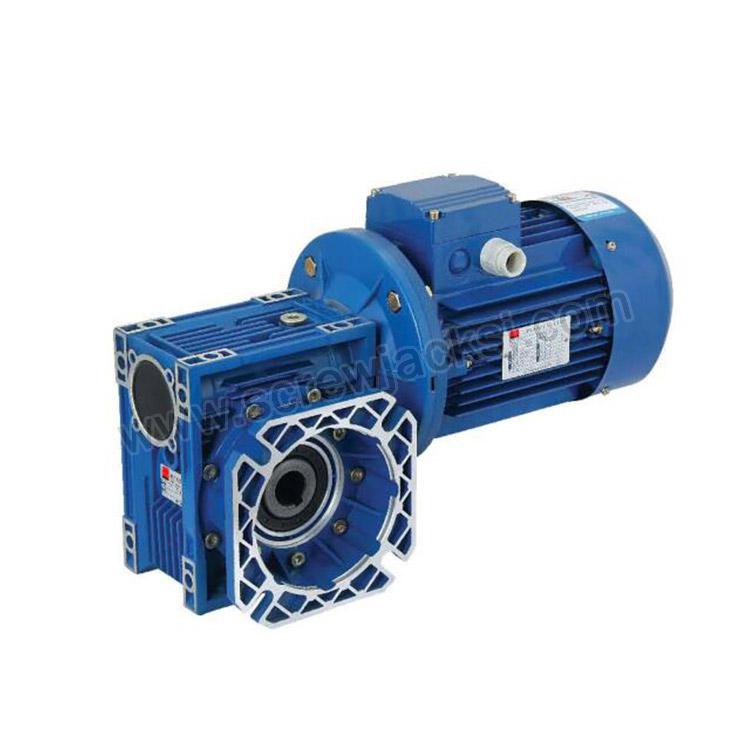

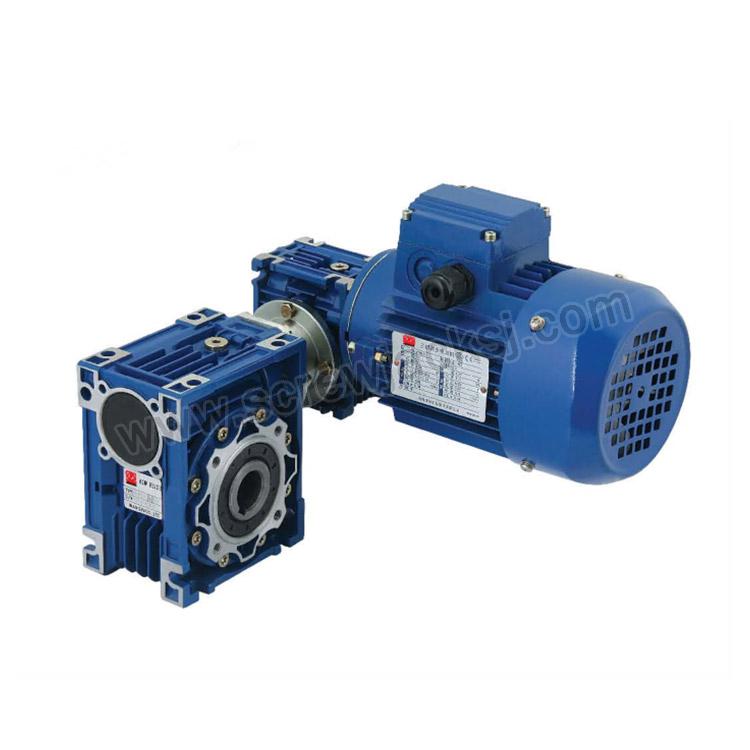

Worm gear reducer with motor offers the economic solution for the single motorized screw jack or screw jack system when need low speed and higher torque.
High quality die casting aluminum alloy housing, suitable for universal mounting.
Heat sink design for cooling provides great surface area and higher thermal capacity.
Hardened worm with fine grinding has the features of higher efficiency and big output torque.
Low noise and stably running, can adapt long term work condition in terrible environments.
Model: NMRV025, NMRV030, NMRV040, NMRV050, NMRV063, NMRV090, NMRV110, NMRV130, NMRV150.
Power: 0.06kw, 0.09kw, 0.12kw, 0.18kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw.
Motor IEC flange size: 56B14, 56B5, 63B14, 71B14, 71B5, 80B14, 80B5, 90B5, 100/112B14, 100/112B5, 132B5, 160B5.
Output Torque: 2.6N.m to 1760n.m
