Stainless Steel Bevel Gearbox

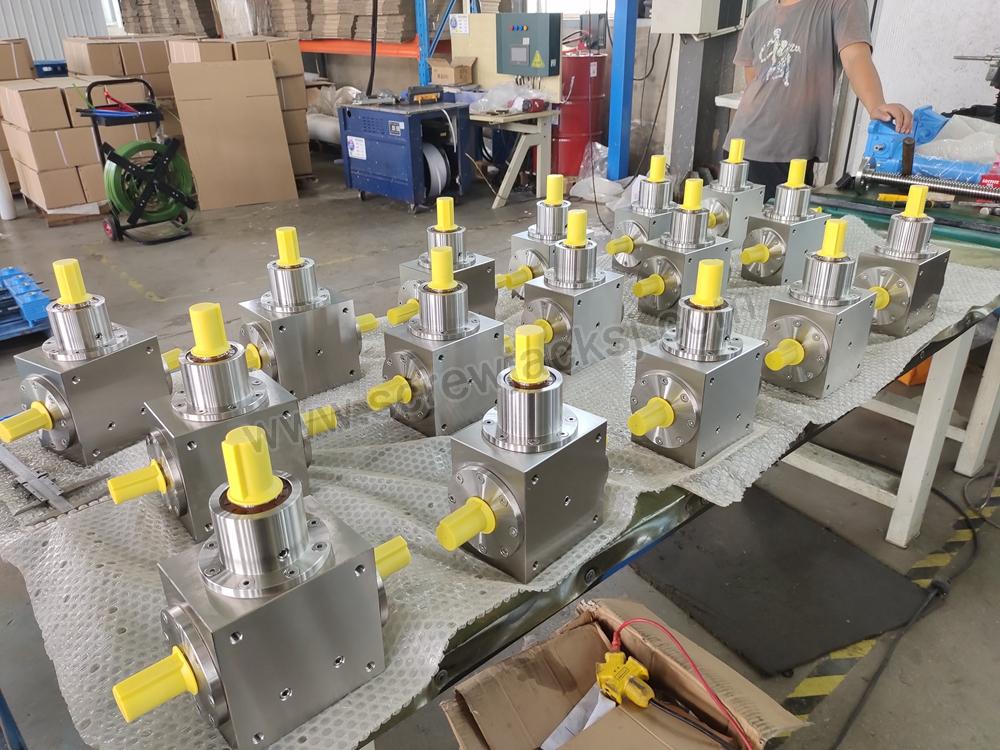

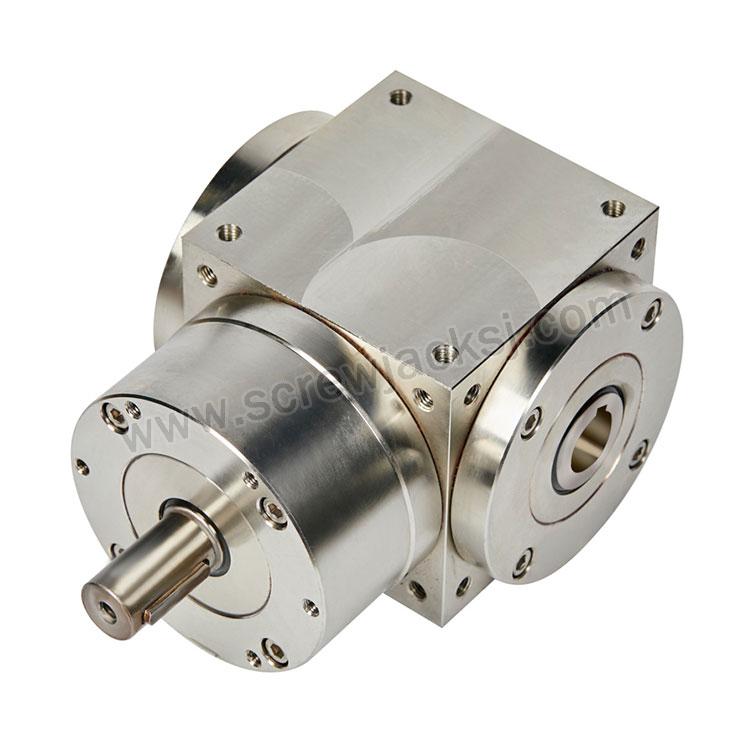

Our SSJV series is a high quality, Low Backlash, Stainless Steel Spiral Bevel Cubic Gearbox. The gearbox is used for precision speed reduction, increase torque, or to manipulate the direction of shaft rotation. The spiral bevel gears are heat treated and lapped for maximum strength, smooth rotation, and efficient tooth contact.

1. Low Backlash: Hardened and lapped matched set gearing provides smooth, reliable, and predictable rotary motion.
2. Flexible Mounting: This stainless steel right-angle gearbox has machined housing and tapped holes allow mounting on all six sides.
3. Machined Flanges: Provides alignment for perfect shaft centering.
4. Bearing Options: Ball bearings for quiet operation, tapered bearings for higher radial load capacity.
5. Special Designs: Standard models can be modified for maximum design versatility, OEM/ODM dimensions are available.
6. Perfect appearance: Polished 316 or 304 Stainless Steel housing for clean look and sophistication.
7. Gear Ratio: 1:1, 2:1, 3:1, 4:1, 5:1. 98% efficiency. Torque capacity up to 180Nm.
8. Oil Seal Option: Double Lip, UV protected oil seal to prevent external contamination
9. Speed Options: Standard not more than 2000rpm, special for 3000rpm.

Get A Quote

DETAILS

SSJV Stainless Steel Bevel Gearbox Specifications:

Gear Ratio	Input speed( rpm)	Output speed( rpm )	SSJV-090		SSJV-110		SSJV-140
Gear Ratio	Input speed( rpm)	Output speed( rpm )	Power (KW )	Torque (N.m )	Power (KW )	Torque (N.m )	Power (KW )	Torque (N.m )
1:1	2000	2000	7.55	33.6	13.8	63	29.9	128.6
	1500	1500	6	38.2	11	70	23.9	152.2
	1000	1000	4.3	41.07	7.8	75	17.2	164.3
	750	750	3.4	43.29	6.1	78.3	13.4	170.6
2:1	2000	1000	4.2	38.57	7.9	72	14.1	133.3
	1500	750	3.35	42.66	6.3	80.2	11.1	141.3
	1000	500	2.35	44.89	4.4	85	7.8	149.9
	750	375	1.8	45.84	3.4	87.9	6.2	157.9

Gearbox Model	SSJV-090( 18mm Shafts Diameter)	SSJV-110( 22mm Shafts Diameter)	SSJV-140( 32mm Shafts Diameter)
Max. Input Speed ( rpm )	2000	2000	2000
Gear Ratio	1:1, 2:1, 3:1, 4:1, 5:1	1:1, 2:1, 3:1, 4:1, 5:1	1:1, 2:1, 3:1, 4:1, 5:1
Max. Radial load ( N )	1450	2100	2700
Max. Axial force ( N )	725	1050	1350
Rated life ( H )	>10000 at permissible input speed and power	>10000 at permissible input speed and power	>10000 at permissible input speed and power
Operating Temperature Range ( ℃ )	-10℃ to +50℃	-10℃ to +50℃	-10℃ to +50℃
Sound Level ( dB )	≤70	≤71	≤72
Mounting POS, Lubrication	Horizontal/SYG990 or Mobil 460 Oil	Horizontal/SYG990 or Mobil 460 Oil	Horizontal/SYG990 or Mobil 460 Oil
Direction of rotation	CW/CCW	CW/CCW	CW/CCW
Protection class	IP64	IP64	IP64
Efficiency ( % )	95-98	95-98	95-98
No-load running torque ( N.m )	0.6	1.2	1.9
Warranty	13 months	13 months	13 months

SSJV Series Stainless Steel Bevel Gearbox Ordering Information:

SSJV90 – 1:1 – 1500R – 1500R – I-LR – A
1 2 3 4 5 6

1: Gearbox model

Before selecting SSJV gearbox model, please check above SSJV Series Stainless Steel Bevel Gearbox Specifications.

2: Gear Ratio

Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.

3 & 4. Input & Output RPM

Input speed	2000rpm	1500rpm	1000rpm	750rpm	500rpm	250rpm	50rpm
Gear Ratio	1:1
Output speed	2000rpm	1500rpm	1000rpm	750rpm	500rpm	250rpm	50rpm
Gear Ratio	1.5:1
Output speed	1333rpm	1000rpm	667rpm	500rpm	333rpm	167rpm	33rpm
Gear Ratio	2:1
Output speed	1000rpm	750rpm	500rpm	375rpm	250rpm	125rpm	25rpm
Gear Ratio	3:1
Output speed	667rpm	500rpm	333rpm	250rpm	167rpm	83rpm	17rpm
Gear Ratio	4:1
Output speed	500rpm	375rpm	250rpm	187rpm	125rpm	62.5rpm	12.5rpm
Gear Ratio	5:1
Output speed	400rpm	300rpm	200rpm	150rpm	100rpm	50rpm	10rpm

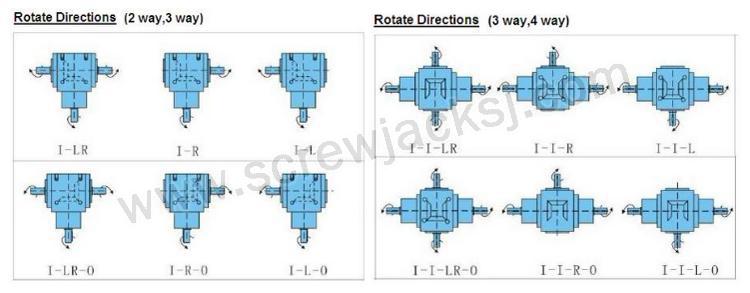

5: Rotate directions:

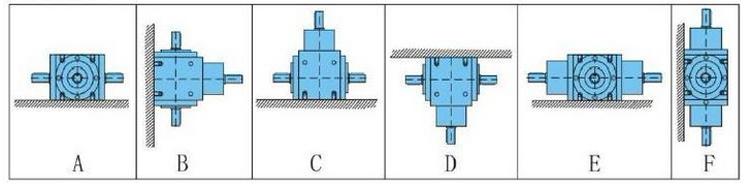

6: Installation:
