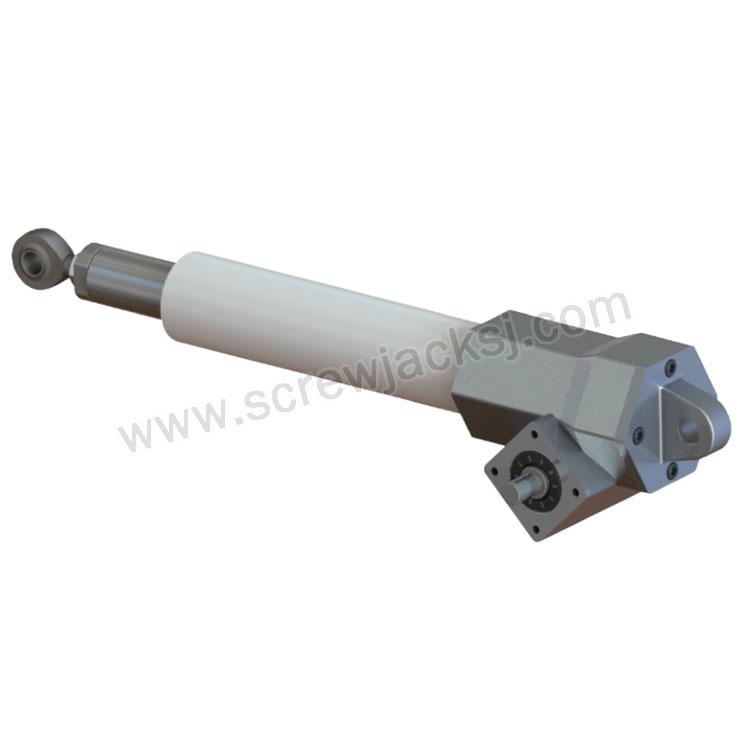

T Series Linear Actuators Specifications

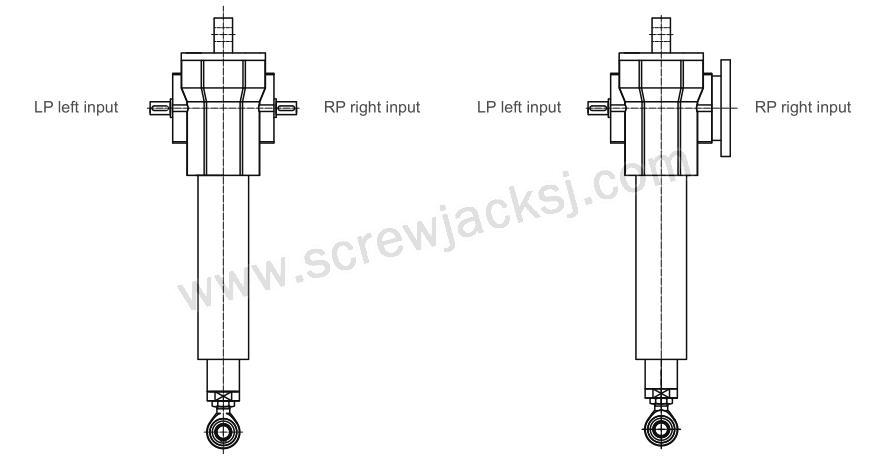

Linear Actuator Installation
Screw Top End

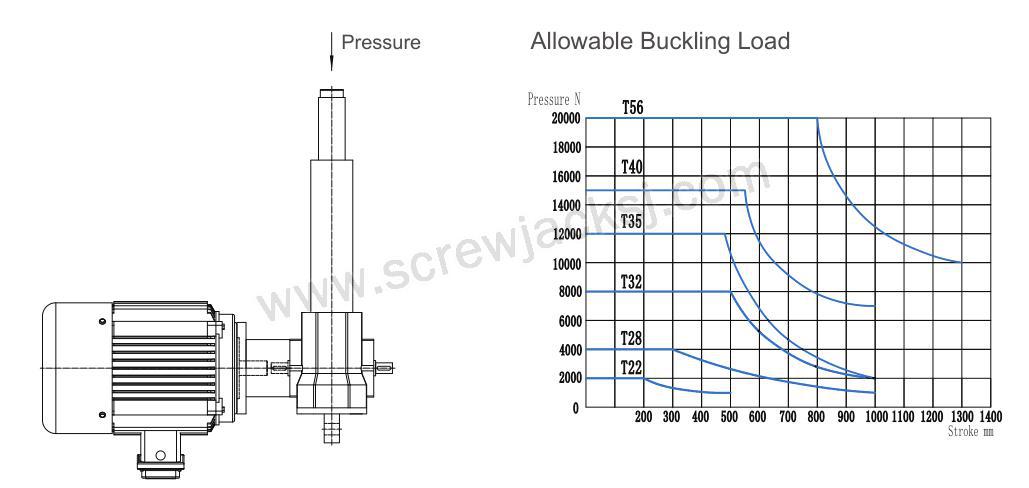

Allowable Buckling Load
Selecting Model Attention
The working cycle is system within 10 minutes of work for the percentage of time.
T22 Acme linear actuator working cycle is 25%.
T28, T32, T35, T40, T56 Acme linear actuator working cycle is 30%.
When the actual load is much less than the rated load, the working cycle can be appropriately increased.
Please confirm the Self-locking conditions according to the Self-locking Parameters. No self-locking acme screw and ball screw need brake.
The axial error of the acme screw and the ball screw linear electric is 0.1 mm(300 mm stroke).
For special requirements design, please contact the technical department.
Self-locking conditions
1. Static self-locking
Self-locking coefficient＜0.35
Without load vibrations, not running.
2.Dynamic self-locking
Self-locking coefficient＜0.3
With a load opposite the motion, actuator not running.
Self-locking coefficient＜0.25
With a load positive the motion, actuator not running.
3.Uncertain self-locking
Self-locking coefficient is between 0.35 and 0.55.
Under bigger external force, actuator running.
4.No self-locking
Self-locking coefficient＞0.55
Actuator running under small external force.
| Model | Speed ( mm/s ) | Dynamic load ( N ) | Gear Ratio | Motor parameters |
| T22 | 5.8 | 700 | 16 | 0.09KW 1400RPM 380V 50HZ |
| 11.6 | 500 | 8 | ||
| 23 | 300 | 4 | ||
T28 |
3.8 | 2000 | 24 | 0.18KW 1400RPM 380V 50HZ |
| 7.8 | 1000 | 12 | ||
| 11.4 | 1000 | 8 | ||
| 15.2 | 700 | 6 | ||
| T32 | 3.8 | 4000 | 24 | 0.25KW 1400RPM 380V 50HZ |
| 7.8 | 3000 | 12 | ||
| 11.4 | 2000 | 8 | ||
| 15.2 | 1000 | 6 | ||
| T35 | 5.8 | 6000 | 16 | 0.55KW 1400RPM 380V 50HZ |
| 11.6 | 4000 | 8 | ||
| 23 | 2000 | 4 | 0.37KW 1400RPM 380V 50HZ | |
| T40 | 5.8 | 8000 | 20 | 0.75KW 1400RPM 380V 50HZ |
| 11.6 | 5000 | 10 | ||
| 23 | 3000 | 5 | 0.55KW 1400RPM 380V 50HZ | |
| T56 | 5.8 | 12000 | 24 | 1.5KW 1400RPM 380V 50HZ |
| 11.6 | 10000 | 12 | ||
| 23 | 7000 | 6 | 1.1KW 1400RPM 380V 50HZ |

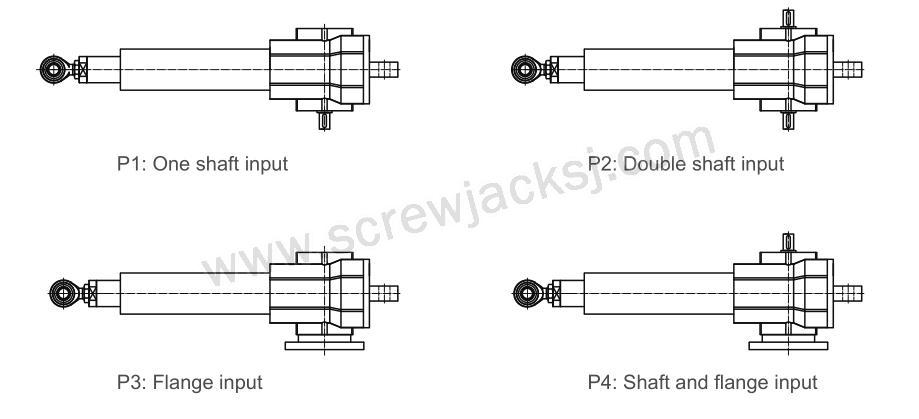

Linear Actuator Installation
Screw Top End
 |
 |
 |
 |
 |
 |

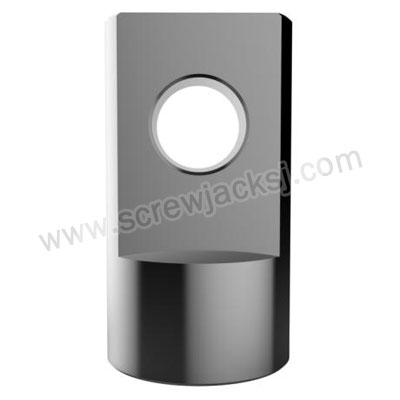

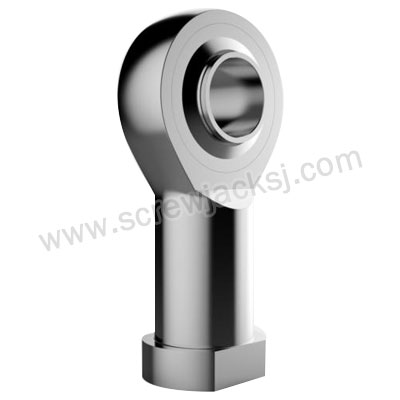

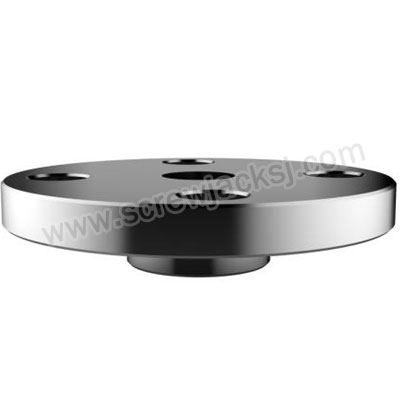

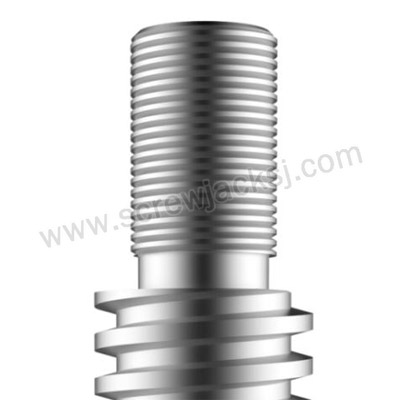

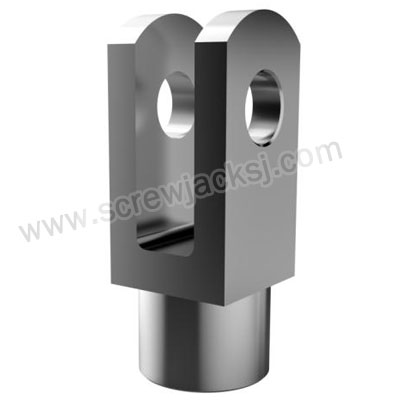

| T: Top Plate | H: Clevis End | S: Thread End | R: Plain End | U: Forked Head | SH:Spherical Hinge |
