A universal joint is a mechanical device that allows two shafts not in line( offset) with each other limited freedom of movement in any direction whilst transmitting rotary and torque. It is an ideal form of couplings each two shafts by universal joints when offset is unavoidable in simultaneously lifting twin screw jack system or multiple screw jack system.
Suitable for all kinds of general machinery occasions,
maximum speed up to 4000 min-1

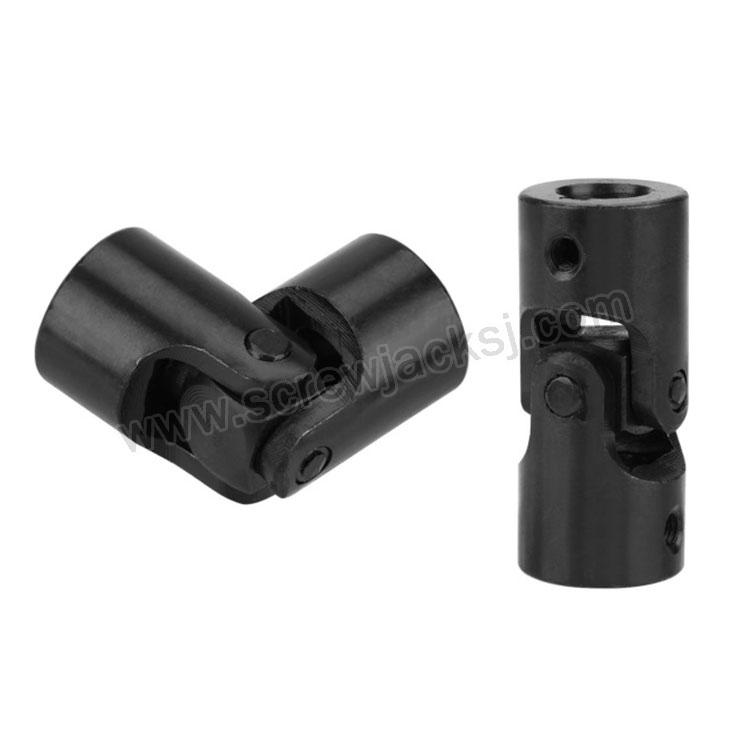

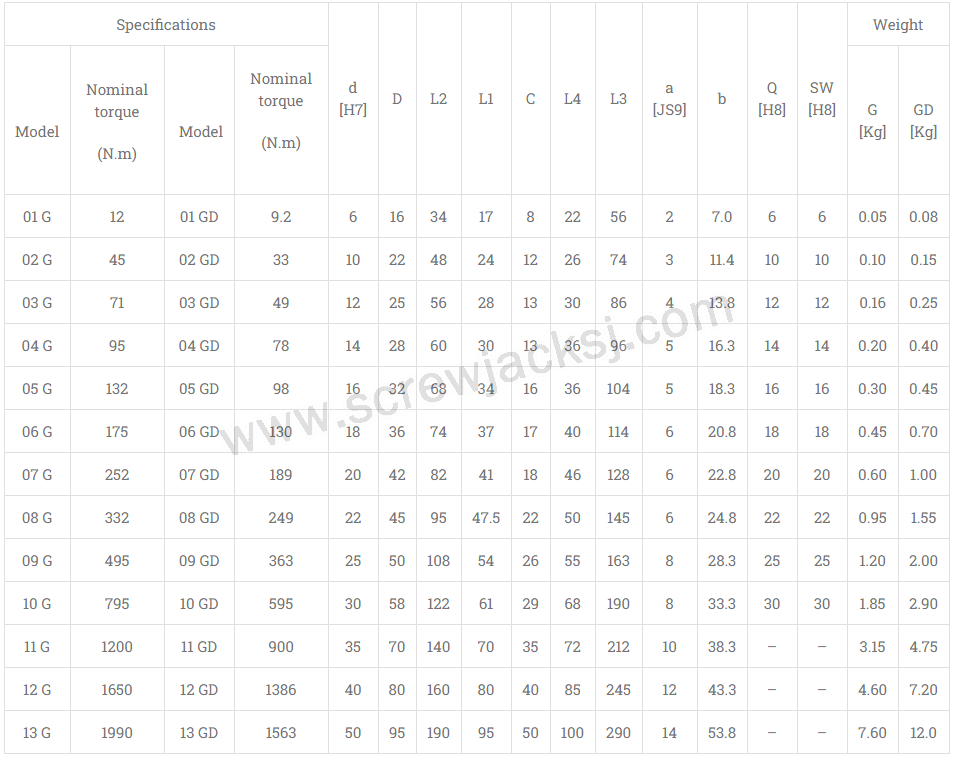

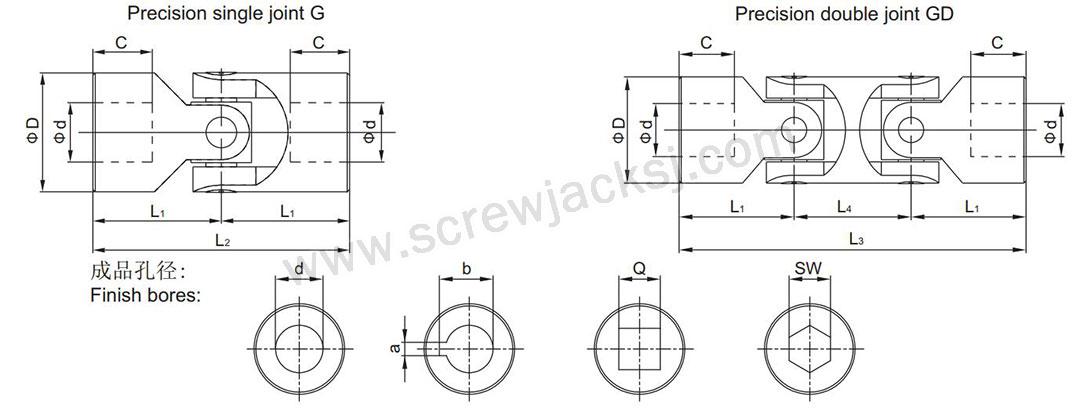

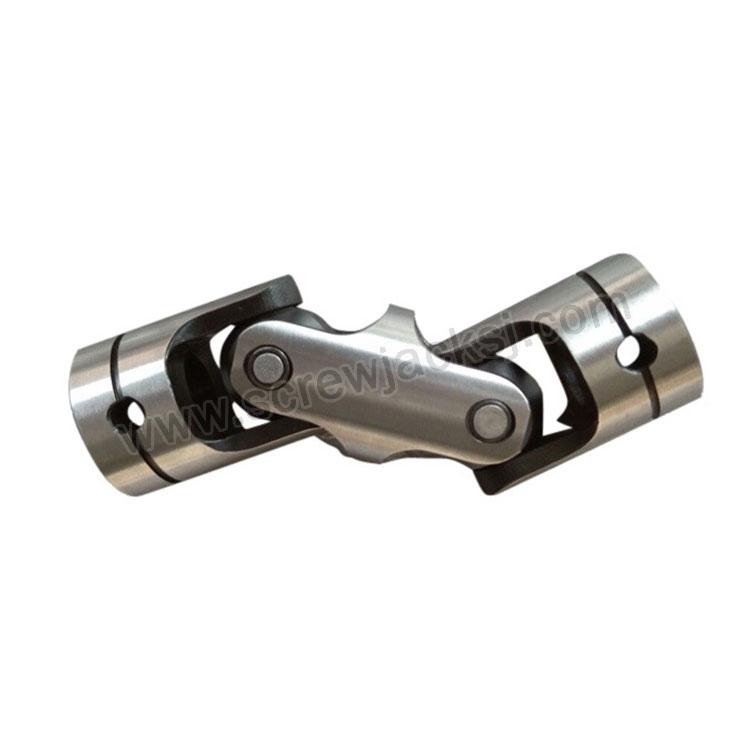

Type G precision single joint,Type GD precision double joint
Maximum articulation angle 45 for each joint
Available with finish bore H7 – on request with keyway, hexagon bore or square bore
Type G GD (plain bearing)Bearings designed nmax= 1000 min-1
Type GZ、GDZ (needle bearing)Bearings designed nmax= 4000 min-1
