    Flange Blocks

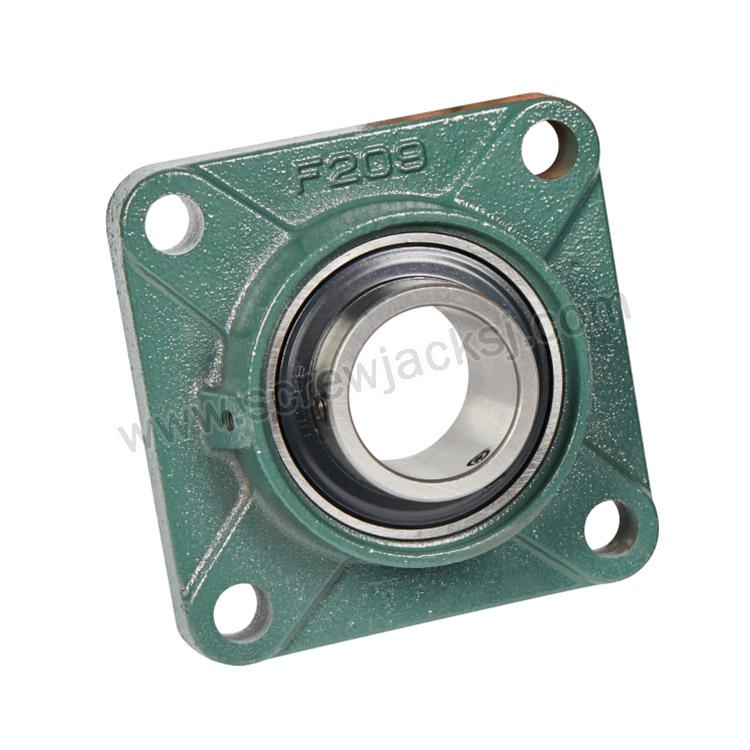

    Flange blocks are important components to operate with nut traveling type screw jacks.
    The Flange blocks lock on to the end of the rotating screw, and can then be bolted on to the machine or fixture. This ensures that
    the load being carried by the screw jack’ lifting nut is properly guided.
    Flange blocks include self-aligning replaceable bearings that are pre-lubricated, they are suitable for use under normal duty operation.

     Get A Quote
    Model
    Shaft Diameter

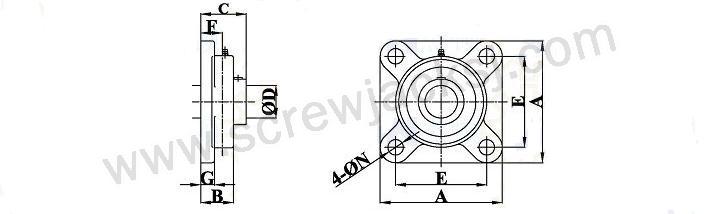

    ( mm)    		 Dimensions ( mm ) Weight ( Kg )
    A B C E F G N
    CP201 12 86 25.5 33.3 64 15 12 12 0.6
    CP202 15 86 25.5 33.3 64 15 12 12 0.6
    CP203 17 86 25.5 33.3 64 15 12 12 0.6
    CP204 20 86 25.5 33.3 64 15 12 12 0.7
    CP205 25 95 27 35.7 70 16 14 12 0.9
    CP206 30 108 31 40.2 83 18 14 12 1.1
    CP207 35 117 34 44.4 92 19 16 16 1.5
    CP208 40 130 36 51.2 102 21 16 16 2.0
    CP209 45 137 38 52.2 105 22 18 19 2.2
    CP210 50 143 40 54.6 111 22 18 19 2.4
    CP211 55 162 43 58.4 130 25 20 19 3.5
    CP212 60 175 48 68.7 143 29 20 19 4.2
    CP213 65 187 50 69.7 149 30 20 19 5.3
    CP214 70 193 54 75.4 152 31 24 19 6.0
