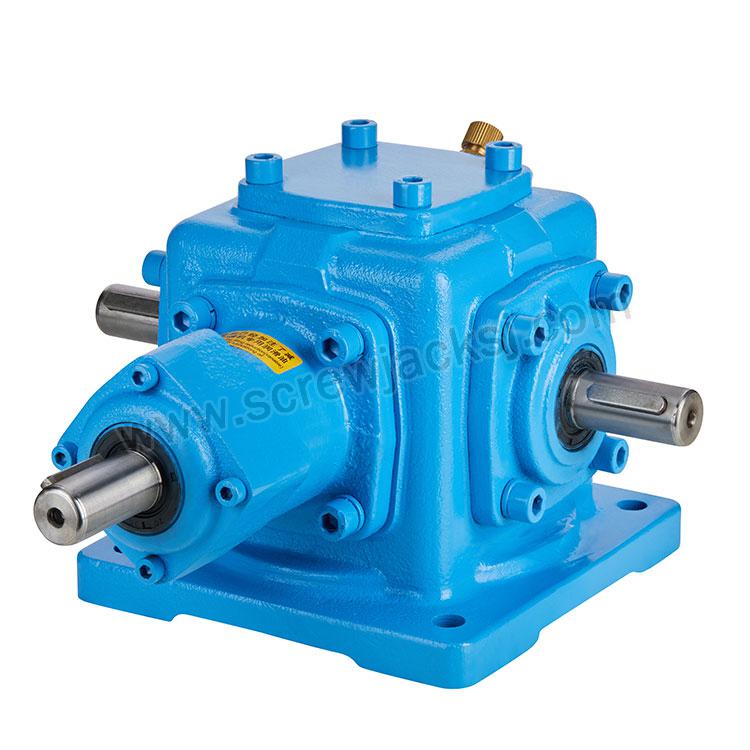

    • spiral bevel gearbox spiral bevel gearbox
    spiral bevel gearboxes spiral bevel gearboxes

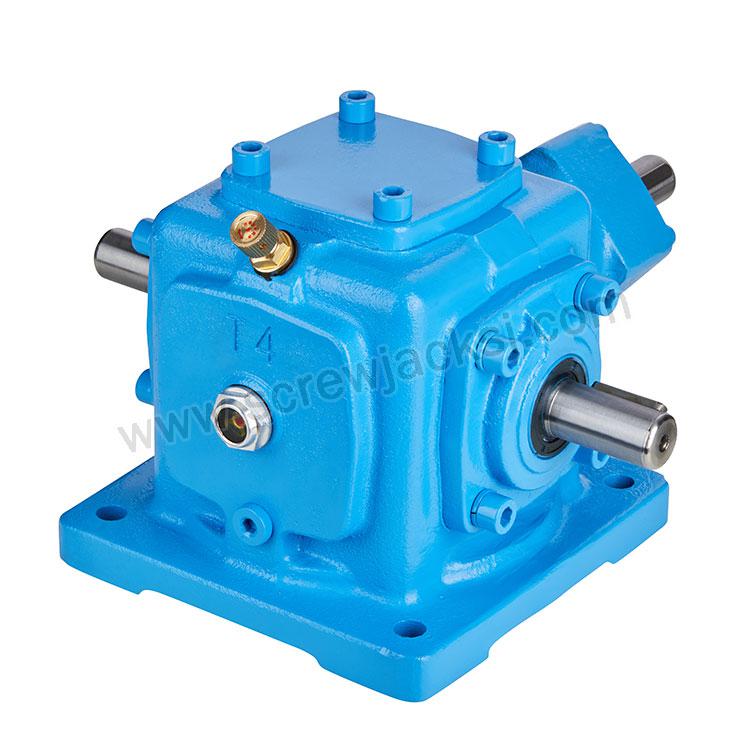

    T4 spiral bevel gearbox T4 spiral bevel gearbox

    Spiral Bevel Gearboxes

    Our spiral bevel gearboxes offer the high axial ball bearings enable quiet operation with the capacity to handle the radial load. The double lip, UV protected oil seals ensure environh. The spiral bevel gears are heat treated and lappemental gear protection and no leak during pressure wasd for maximum strength, smooth rotation, and efficient tooth contact.

    Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
    Drive shaft available: 1 way, 2 way, 3 way, 4 way.
    Max. Permissible Speed 1500rpm, Max input torque 5713N.m.
    Working temperature: -40ºC~+80ºC, customized special temperature.
    Function: 90 degrees angle changes transmission directions
    Hollow shaft, solid shaft, flange input are available

     Get A Quote
    SJT Spiral Bevel Gearboxes Specifications:

    SJ-T2 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 11.6 1.79     12.1 0.94
    1150 11.7 1.43     12 0.74
    870 12.1 1.12     12 0.56
    580 12.1 0.747     11.9 0.37
    400 12.3 0.524     12.2 0.26
    300 12.3 0.396     11.9 0.19
    200 12.4 0.226     12.2 0.13
    100 12.7 0.136     11.2 0.06
    10 13.0 0.014     28.1 0.015


    SJ-T4 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 31.9 4.94     42.8 3.32
    1150 34.1 4.19     43.4 2.67
    870 37.2 3.46     43.8 2.04
    580 39.5 2.45     44.4 1.38
    400 40.2 1.72     45.1 0.96
    300 40.5 1.30     45.5 0.73
    200 41.2 0.88     46.1 0.49
    100 41.9 0.448     46.6 0.25
    10 43.0 0.046     48.5 0.026


    SJ-T6 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 96.0 14.9 117 12.1 42.8 3.32 96.2 5.97 93.6 4.48 80.6 2.12 52.0 0.02
    1150 103 12.7 122 9.96 43.4 2.67 97.2 4.78 94.8 3.88 81.5 2.50 52.5 1.61
    870 113 10.5 123 7.66 43.8 2.04 99.0 3.68 95.9 2.97 82.4 1.92 53.2 1.29
    580 119 7.35 126 5.23 44.4 1.38 100.0 2.48 97.6 2.02 84.1 1.30 54.2 0.99
    400 122 5.20 128 3.66 45.1 0.96 100.9 1.73 99.0 1.41 85.1 0.91 54.9 0.67
    300 123 3.93 129 2.77 45.5 0.73 102.9 1.32 100 1.07 86.1 0.69 55.5 0.47
    200 124 2.66 131 1.87 46.1 0.49 103.9 0.888 100 0.71 86.0 0.46 55.4 0.36
    100 127 1.36 134 0.957 46.6 0.25 104.9 0.448 102 0.36 87.7 0.23 56.5 0.24
    10 132 0.141 139 0.099 48.5 0.026 107.8 0.046 104 0.04 89.3 0.02 57.6 0.12


    SJ-T7 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 142 22.0 145 15.0 137 10.6 113 6.99 105 5.42 93.4 3.62 57.4 1.78
    1150 150 18.4 147 12.0 139 8.55 115 5.64 106 4.34 94.3 2.90 58.0 1.43
    870 164 15.2 150 9.30 141 6.56 116 4.30 108 3.34 95.5 2.23 59.0 1.10
    580 184 11.4 153 6.32 144 4.47 118 2.92 109 2.25 96.9 1.50 59.6 0.74
    400 195 8.34 155 4.41 146 3.12 120 2.05 111 1.58 98.7 1.05 60.7 0.52
    300 198  6.35 157 3.35 148 2.37 121 1.55 111 1.18 98.3 0.79 60.4 0.39
    200 201 4.30 160 2.28 149 1.59 123 1.05 113 0.803 101 0.54 61.7 0.26
    100 206 2.20 163 1.16 152 0.812 123 0.528 115 0.409 101 0.27 62.9 0.13
    10 214 0.228 169 0.12 157 0.084 126 0.054 118 0.42 101 0.03 64.5 0.01


    SJ-T8 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 294 45.6 185 19.1 42.8 3.32 184 11.4 159 8.20 124 4.8 68.7 2.13
    1150 305 37.5 188 15.4 43.4 2.67 185 9.11 160 6.55 125 3.83 69.2 1.70
    870 312 29.0 191 11.8 43.8 2.04 188 7.00 163 5.04 127 2.95 70.4 1.31
    580 319 19.8 197 8.14 44.4 1.38 192 4.76 166 3.42 129 2.00 71.7 0.89
    400 326 14.0 200 5.70 45.1 0.96 195 3.34 168 2.39 131 1.40 72.6 0.62
    300 331 10.6 203 4.34 45.5 0.73 197 2.53 169 1.80 131 1.05 72.9 0.47
    200 338 7.2 204 2.91 46.1 0.49 200 1.710 171 1.22 134 0.71 74.1 0.32
    100 346 3.7 210 1.49 46.6 0.25 203 0.867 173 0.618 135 0.36 75.1 0.16
    10 361 0.386 218 0.155 48.5 0.026 208 0.089 179 0.064 140 0.04 77.8 0.02


    SJ-T10 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 421 65.3 374 38.7 305 23.6 293 18.2 270 14.0 241 9.35 136 4.21
    1150 453 55.7 380 31.2 309 19.0 298 14.7 275 11.3 246 7.54 138 3.39
    870 479 44.6 389 24.1 315 14.6 302 11.2 279 8.66 249 5.78 140 2.60
    580 493 30.6 396 16.4 322 10.0 310 7.68 285 5.89 254 3.93 143 1.77
    400 504 21.5 406 11.6 328 7.02 315 5.38 288 4.11 257 2.74 144 1.23
    300 513  16.4 411 8.78 332 5.33 317 4.06 291 3.11 259 2.08 146 0.93
    200 521 11.1 417 5.95 338 3.61 321 2.75 294 2.10 262 1.40 148 0.63
    100 535 5.72 426 3.04 344 1.84 326 1.40 300 1.07 267 0.71 150 0.32
    10 561 0.5999 443 0.316 357 0.191 336 0.144 308 0.11 275 0.07 155 0.03


    SJ-T12 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 619 96.0 564 58.3 516 40.0 507 31.4 458 23.6 434 16.8 296 9.18
    1150 665 81.1 601 49.2 516 31.7 514 25.3 464 19.0 441 13.5 301 7.39
    870 726 67.5 656 40.7 516 24.0 523 19.5 469 14.6 448 10.4 305 5.68
    580 802 49.7 699 28.9 524 16.3 535 13.3 480 9.92 456 70.7 311 3.86
    400 821 35.1 711 20.3 538 11.5 545 9.32 490 6.98 465 4.97 318 2.72
    300  835  26.8 724 15.5 543 8.71 552 7.08 495 5.29 470 3.77 321 2.06
    200 852 18.2 736 10.5 551 5.89 560 4.79 501 3.57 476 2.54 325 1.39
    100 875 9.36 754 5.37 563 3.01 568 2.43 510 1.82 485 1.30 331 0.71
    10 919 0.983 785 0.56 586 0.313 588 0.251 527 0.188 501 0.13 342 0.07


    SJ-T16 Spiral Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450 1019 163     921 73.7     904 48.2 850 34.3 814 26.3
    1150 1098 139     938 59.5     920 38.9 865 27.7 828 21.2
    870 1186 114     958 46     940 30.1 884 21.4 847 16.4
    580 1343 85.9     980 31.3     960 20.4 902 14.6 864 11.2
    400 1499 66.1     1000 22     978 14.4 919 10.2 881 7.85
    300 1637  54.1     1009 16.7     990 10.9 930 7.8 891 5.96
    200 1784 39.3     1029 11.3     1005 7.38 944 5.3 905 4.03
    100 1842 20.3     1058 5.84     1038 3.82 976 2.7 935 2.08
    10 1940 2.14     1098 0.605     1076 0.4 1011 0.3 969 0.22

    SJ-T20 Bevel Gearbox Specifications:
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450         1578 126     1529 82.3 1452 58.7 1391 44.9
    1150 1842 234     1607 102     1561 66.6 1483 47.5 1420 36.4
    870 2009 193     1646 79     1598 51.6 1518 36.8 1454 28.2
    580 2274 145     1695 54.2     1644 35.4 1562 25.2 1496 19.3
    400 2538 112     1725 38     1672 24.8 1588 17.7 1521 13.6
    300 2744 90.8     1754 29     1701 18.9 1616 13.5 1548 10.3
    200 3125 69     1784 19.7     1733 12.9 1646 9.17 1577 7.03
    100 3206 35.3     1833 10.1     1777 6.6 1688 4.7 1617 3.6
    10 3205 3.35     1921 1.06     1865 0.69 1772 0.49 1697 0.38


    SJ-T25 Bevel Gearbox Specifications
    Ratio 1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
    r/min N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW N.m KW
    1450                     2798 113 2631 85
    1150         3146 199     2935 158 2892 92.6 2771 71
    870 3489 335     3224 155     3045 130 2978 72.2 2853 55.3
    580 3940 252     3332 107     3135 101 3084 49.8 2954 38.2
    400 4410 195     3420 75.4     3246 69.9 3151 35.1 3018 26.9
    300 4792 159     3479 57.5     3317 49.3 3204 26.8 3069 20.5
    200 5390 119     3557 39.2     3372 37.6 3276 18.2 3138 14
    100 5439 60     3646 20.1     3449 25.6 3360 9.36 3218 7.17

    SJT Spiral Bevel Gearbox Ordering Information:
    SJ -_   T25  -    1:1    -     I-LR-O    - A
     1       2        3            4         5

    1: Spiral Bevel Gearbox Brand
    SJT: “SIJIE” brand bevel gearbox

    2:  Gearbox base NO.
    T2, T4, T6, T7, T8, T10, T12, T16, T20, T25.

    3:  Gear Ratio
    1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1

    4: Transmission Directions Code

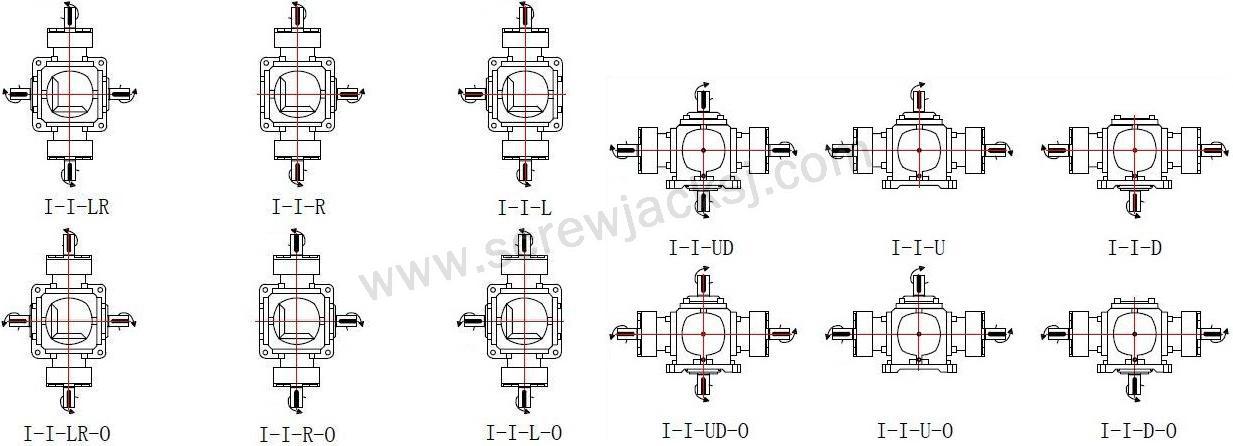

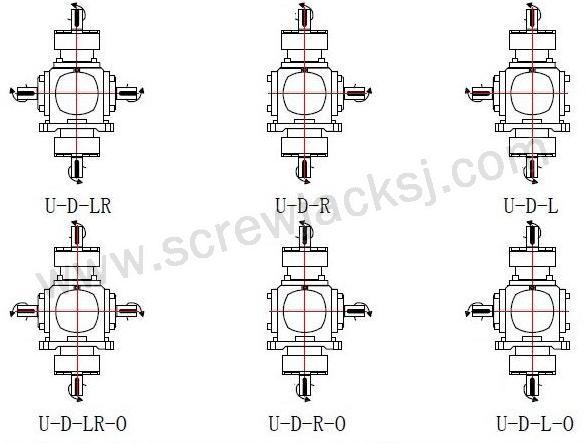

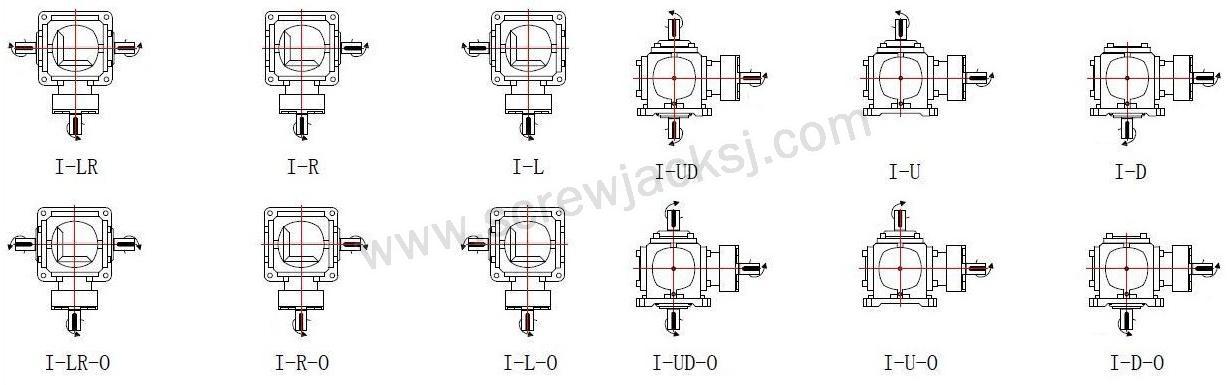

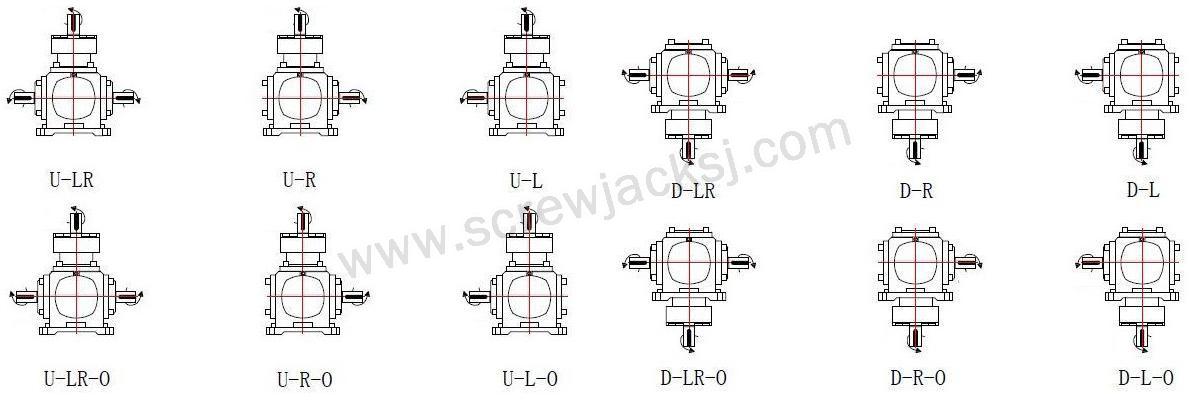

    There are 42 type transmission directions code for customers selection, please check below I-LR(O) series, I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

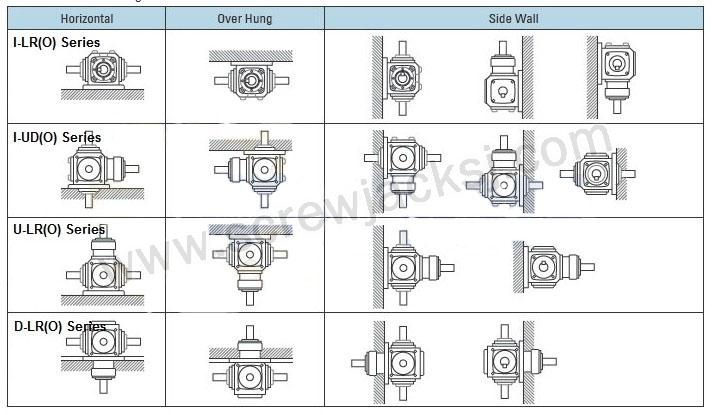

    5: Mounting Position
    A: Horizontal Mounting Position
    B: Over Hung Mounting Position
    C: Side Wall Mounting Position
