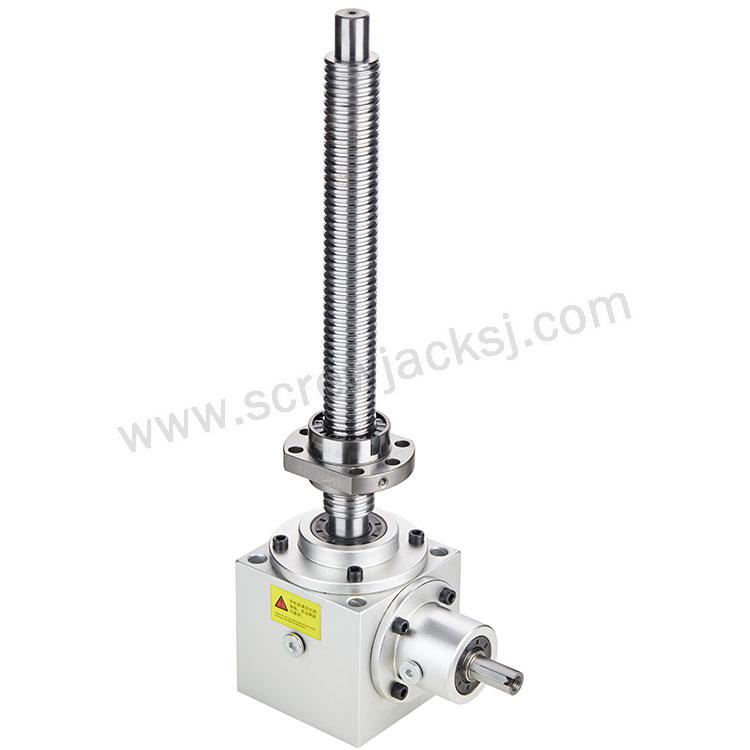

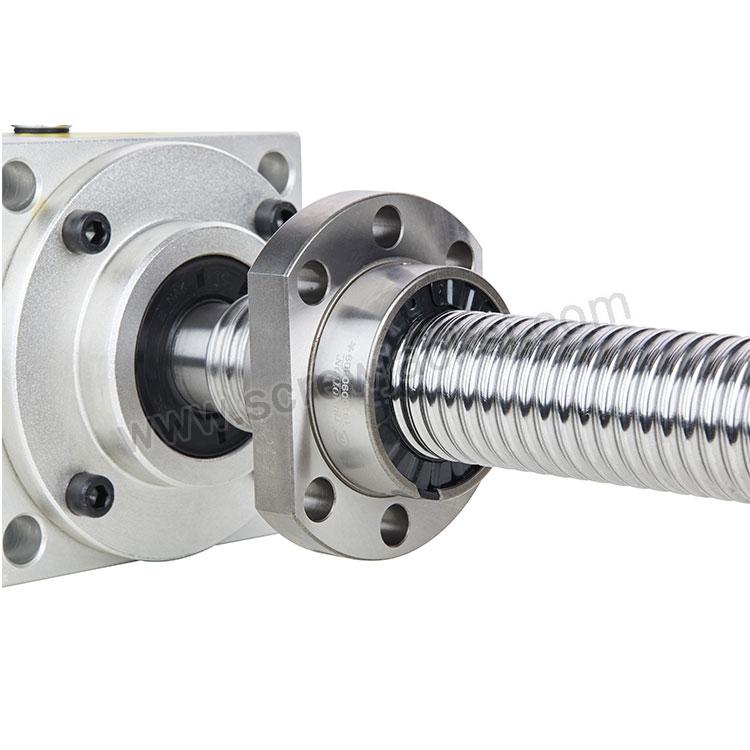

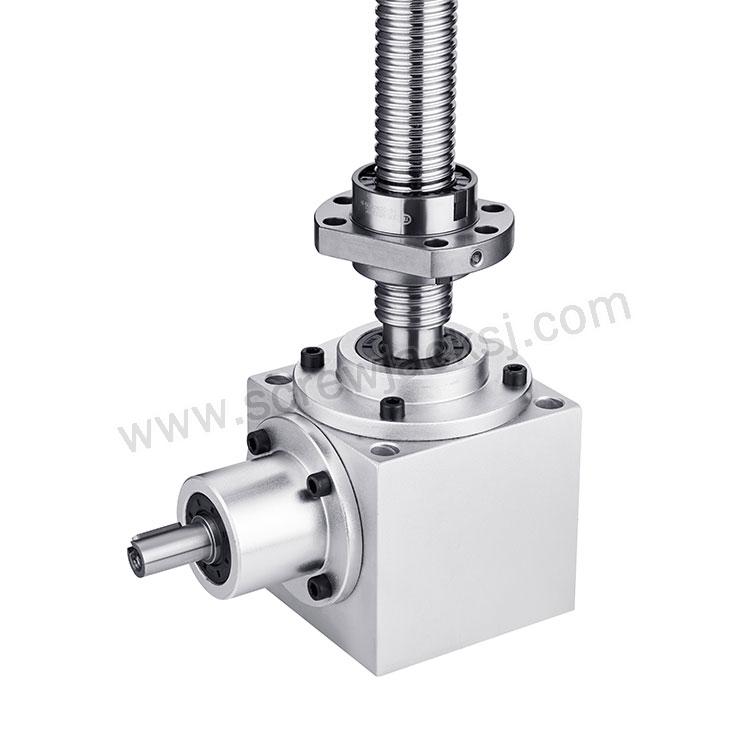

Bevel Ball Jacks Specifications

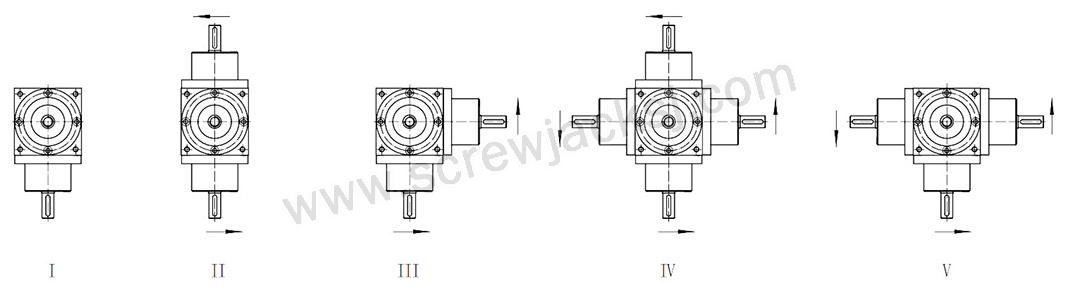

Input Shaft Types
I: Single Input Shaft.
II: Inline Pair Input Shafts.
III: 90 Degree Right Angle Pair Input Shafts.
IV: Three Input Shafts ( T type )
V: Four Input Shafts ( Cross Type )
Note: Due to the limitation of the space structure, the input shaft assembly type III, IV, V cannot be made with a gear ratio of 1:1 (interference between adjacent input gears will occur), and a gear ratio of 2:1 can be used.

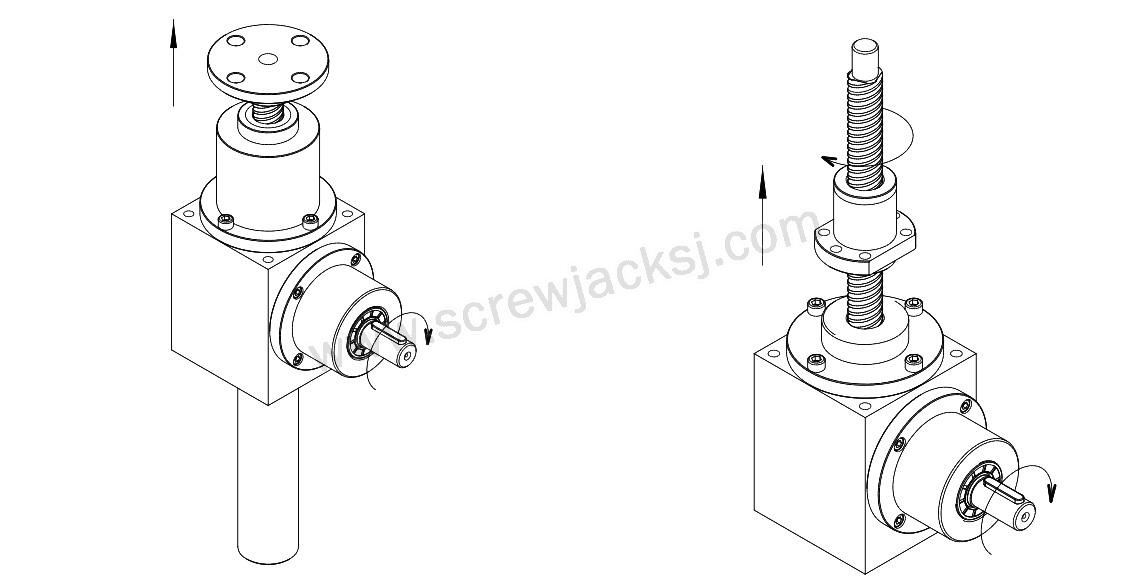

Moving direction of screw and nut

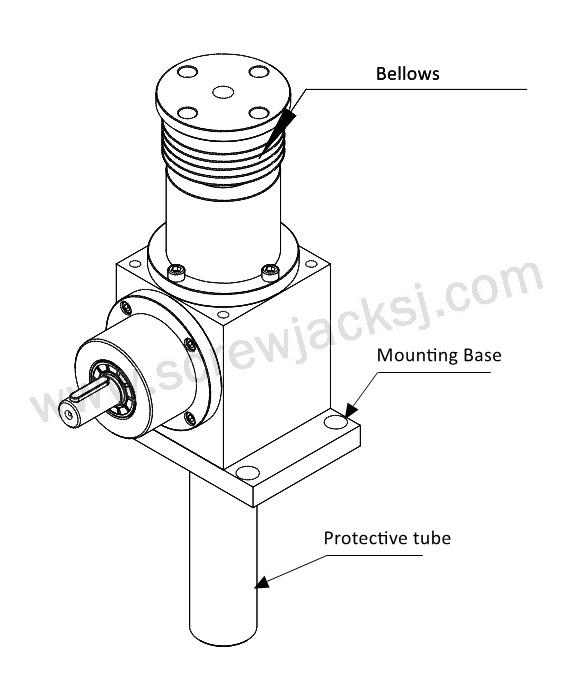

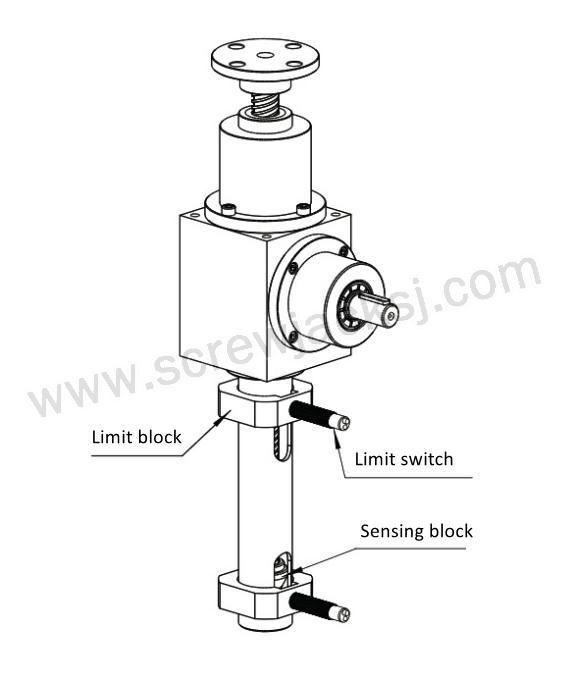

SJS Bevel Gear Jacks Accessories
| Model | SJS16 | SJS20 | SJS25 | SJS32 | SJS40 |
| Rated dynamic load ( N ) | 1000 | 3000 | 5000 | 10000 | 15000 |
| Ball Screw Diameter x Lead (mm) | Ø16x5 | Ø20x5 | Ø25x5 | Ø32x5 | Ø40x5 |
| Ø16x10 | Ø20x10 | Ø25x10 | Ø32x10 | Ø40x10 | |
| Ø16x16 | Ø20x20 | Ø25x25 | Ø32x20 | Ø40x20 | |
| Ø32x32 | Ø40x40 | ||||
| Gear Ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| 2:1 | 2:1 | 2:1 | 2:1 | 2:1 | |
| Efficiency ( % ) | 50 | 50 | 50 | 50 | 50 |
| Starting Efficiency ( % ) | 35 | 35 | 35 | 35 | 35 |
| Maximum Input Power ( KW ) | 0.55 | 1.1 | 1.5 | 3 | 4 |
| Maximum Input Speed ( r/min ) | 800 | 800 | 800 | 800 | 800 |
| Permissible Input Torque ( N.m ) | 15 | 30 | 49 | 140 | 200 |
| No-Load Torque ( N.m ) | 0.5 | 0.8 | 1.0 | 1.4 | 2.0 |
| Housing Material | Aluminum alloy | Nodular cast iron | |||
