For over 12 years, spiral bevel gearboxes from SIJIE have been the market leaders for high quality, reliable, versatile right-angle gearboxes.
We can also manufacture a special bevel gearbox to fit all your demands of the application.
SIJIE spiral bevel gearboxes are offered in 8 types of housing sizes and 6 types of gear ratios, which can be constructed with lots of shaft
configurations and oriented in any direction to easily integrate into your machine design.
All the shaft configurations are suitable for Casting iron, stainless steel, and aluminum version bevel gearboxes.

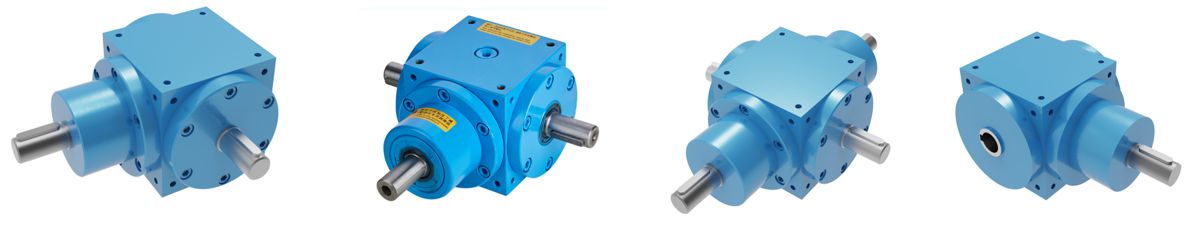

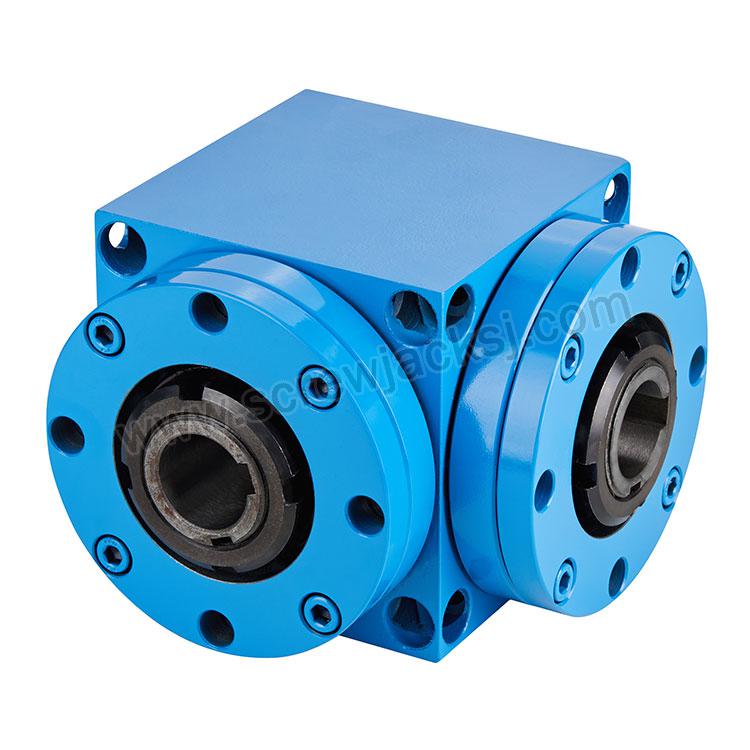

Two-shaft configuration Three-shaft configuration Four-shaft configuration Hollow-shaft configuration

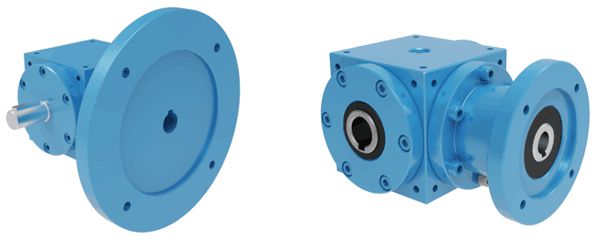

Soild shaft, motor flange configuration Hollow shaft, motor flange configuration

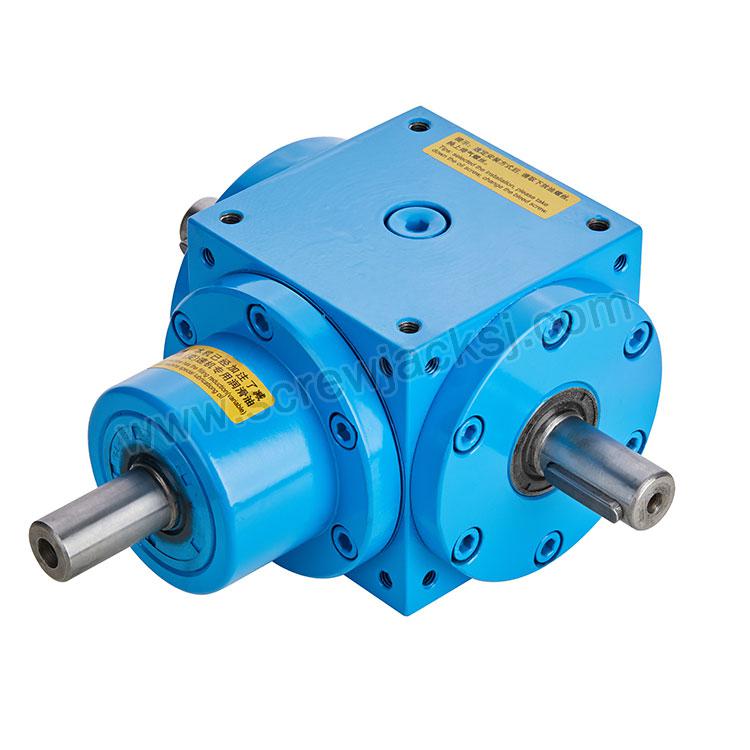

Why SIJIE cubic spiral bevel gearbox?
1: High-quality, low Backlash, quiet noise, smooth running, high torque bevel gearbox professional manufacturer since 2008.
2: The wide range of bevel gearbox product lines can meet the application needs of customers to the greatest extent.
Gearbox housing size is from 065 to 280. Casting iron, stainless steel, and aluminum version gearboxes can be manufactured
according to customers' requirements.
3: Strict quality control has been from the beginning to end at SIJIE. All the cubic bevel gearboxes will be tested in our factory according
to the more than 30 items checking list before shipping.
4: SIJIE cubic type bevel gearbox has 13 months warranty period, during the warranty period, any problem with “SIJIE” products,
after we confirmed, we will guide the customer to fix or ship a new one to replace it in 1-3 working days.
5: SIJIE kept a large inventory of cubic spiral bevel gearbox parts to make sure all the standard orders can be shipped in 7 working days.
6: Our Experienced Engineer Team can design the bevel gearbox drawings to fit all your demands in 2 hours. Small-quantity OEM/ODM orders
also can be accepted by SIJIE.
SJV Spiral Bevel Gearbox Specifications
| Model | Input Speed (RPM) | Gear Ratio 1:1 | Gear Ratio 2:1 | Gear Ratio 3:1 | Gear Ratio 4:1 | Gear Ratio 5:1 | |||||
| Power | Torque | Power | Torque | Power | Torque | Power | Torque | Power | Torque | ||
| ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ||
| SJV-090 | 2000 | 7.55 | 33.6 | 4.2 | 38.57 | 2.85 | 40.39 | 2.15 | 39.76 | 1.4 | 34.56 |
| 1500 | 6 | 38.2 | 3.35 | 42.66 | 2.2 | 42.02 | 1.65 | 42.02 | 1.1 | 35.02 | |
| 1000 | 4.3 | 41.07 | 2.35 | 44.89 | 1.5 | 43.02 | 1.15 | 43.93 | 0.75 | 35.81 | |
| 750 | 3.4 | 43.29 | 1.8 | 45.84 | 1.2 | 45.84 | 0.87 | 44.19 | 0.58 | 36.93 | |
| SJV-110 | 2000 | 13.8 | 63 | 7.9 | 72 | 5.6 | 80 | 3.75 | 70.1 | 2.95 | 71.3 |
| 1500 | 11 | 70 | 6.3 | 80.2 | 4.45 | 85 | 2.9 | 73.9 | 2.35 | 74.8 | |
| 1000 | 7.87 | 75 | 4.45 | 85 | 3.1 | 88.8 | 2 | 76.4 | 1.6 | 76.4 | |
| 750 | 6.15 | 78.3 | 3.45 | 87.9 | 2.4 | 91.7 | 1.55 | 78.9 | 1.25 | 79.6 | |
| SJV140 | 2000 | 29.9 | 128.6 | 14.1 | 133.3 | 10.1 | 136.8 | 6.8 | 125.3 | 5.05 | 115.2 |
| 1500 | 23.9 | 152.2 | 11.1 | 141.3 | 7.95 | 151.8 | 5.3 | 135 | 3.95 | 125.7 | |
| 1000 | 17.2 | 164.3 | 7.85 | 149.9 | 5.6 | 160.4 | 3.75 | 143.3 | 2.75 | 131.3 | |
| 750 | 13.4 | 170.6 | 6.2 | 157.9 | 4.4 | 168.1 | 2.95 | 150.3 | 2.1 | 133.7 | |
| SJV-170 | 2000 | 49.2 | 180.1 | 26.2 | 224.7 | 18.2 | 235.2 | 10.5 | 179.5 | 8.05 | 170.9 |
| 1500 | 39.3 | 250.2 | 20.8 | 264.9 | 14.4 | 275 | 8.4 | 213.9 | 6.45 | 205.3 | |
| 1000 | 28.8 | 275 | 14.9 | 284.6 | 10.1 | 289.4 | 5.9 | 225.4 | 4.5 | 214.9 | |
| 750 | 22.8 | 290.3 | 11.6 | 295.4 | 7.8 | 298 | 4.55 | 231.7 | 3.45 | 219.7 | |
| SJV-210 | 2000 | 84 | 336.7 | 52.4 | 480.2 | 34.9 | 428.3 | 23.3 | 417.6 | 15.9 | 350.2 |
| 1500 | 67.5 | 429.8 | 43.2 | 550.1 | 27.7 | 529.1 | 18.5 | 471.1 | 12.7 | 404.3 | |
| 1000 | 50.5 | 482.3 | 31.4 | 599.7 | 20 | 573 | 13.4 | 511.9 | 9 | 429.8 | |
| 750 | 40.8 | 519.5 | 25.2 | 641.8 | 15.7 | 599.7 | 10.4 | 529.7 | 6.95 | 442.5 | |
| SJV-240 | 2000 | 111 | 475.8 | 71.5 | 643.7 | 52.4 | 695.2 | 37.7 | 652.3 | 28.9 | 643.8 |
| 1500 | 90.5 | 576.2 | 58.5 | 744.9 | 41.9 | 800.3 | 30.2 | 769.1 | 23.4 | 744.9 | |
| 1000 | 68 | 649.4 | 41.9 | 800.3 | 30.2 | 865.2 | 21.7 | 828.9 | 16.4 | 783.1 | |
| 750 | 54.5 | 694 | 33.8 | 860.8 | 23.6 | 901.5 | 17.1 | 871 | 13 | 827.7 | |
| SJV-280 | 2000 | 168 | 837.5 | 107 | 961.4 | 73 | 957 | 47.6 | 870.4 | 39.4 | 890.5 |
| 1500 | 156 | 993.2 | 88 | 1121 | 58.5 | 1117 | 38.5 | 980.5 | 31.4 | 999.6 | |
| 1000 | 115 | 1098 | 64.5 | 1232 | 42.4 | 1215 | 27.5 | 1051 | 22.4 | 1070 | |
| 750 | 94.2 | 1199 | 51 | 1299 | 33.5 | 1280 | 21.7 | 1105 | 17.7 | 1127 | |
SIJIE is the leading manufacturer factory of spiral bevel gearboxes since 2008 in China.

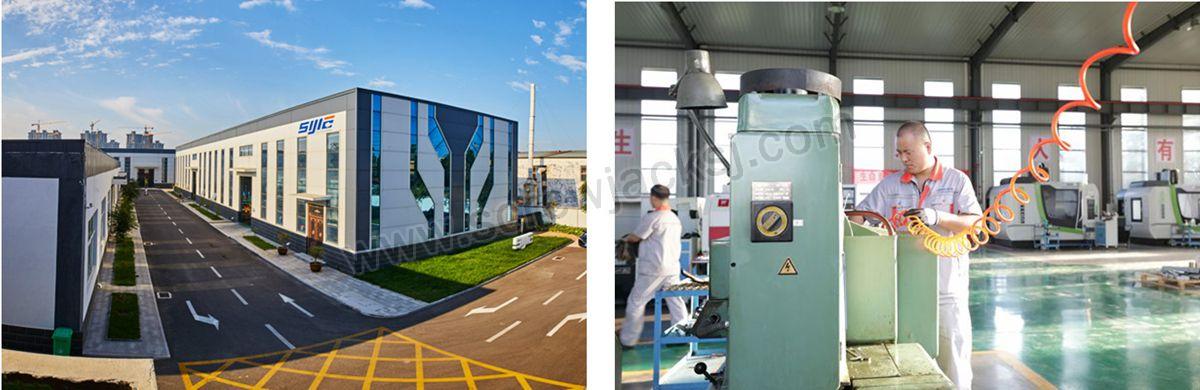

Factory Apprarance Production Workshop

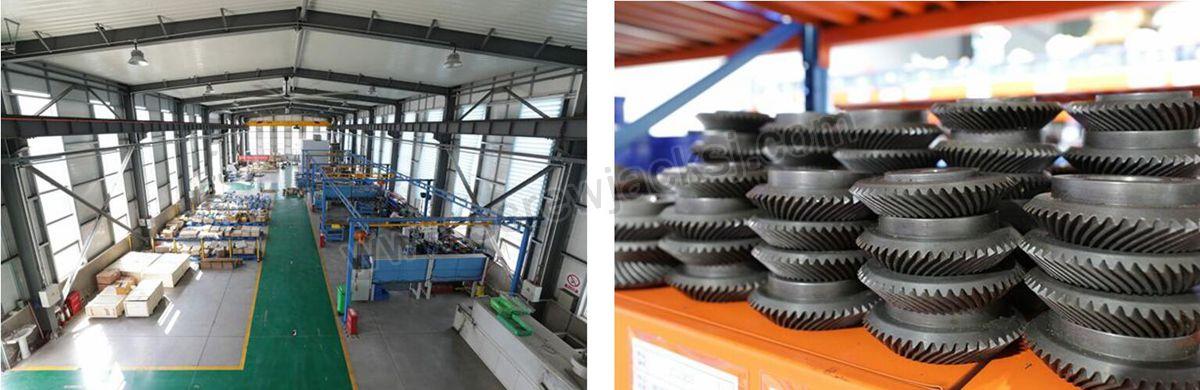

Assembly Workshop Inventory Workshop
SIJIE Team Gearbox Shipment
SJV Series Spiral Bevel Gearbox Ordering Information:
SJV90 – 1:1 – 1500R – 1500R – I-LR – A
1 2 3 4 5 6
1: Gearbox model
Before selecting SJV gearbox model, please check above SJV Series Spiral Bevel Gearbox Specifications.
2: Gear Ratio
Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3 & 4. Input & Output RPM
| Input speed | 2000rpm | 1500rpm | 1000rpm | 750rpm | 500rpm | 250rpm | 50rpm |
| Gear Ratio | 1:1 | ||||||
| Output speed | 2000rpm | 1500rpm | 1000rpm | 750rpm | 500rpm | 250rpm | 50rpm |
| Gear Ratio | 1.5:1 | ||||||
| Output speed | 1333rpm | 1000rpm | 667rpm | 500rpm | 333rpm | 167rpm | 33rpm |
| Gear Ratio | 2:1 | ||||||
| Output speed | 1000rpm | 750rpm | 500rpm | 375rpm | 250rpm | 125rpm | 25rpm |
| Gear Ratio | 3:1 | ||||||
| Output speed | 667rpm | 500rpm | 333rpm | 250rpm | 167rpm | 83rpm | 17rpm |
| Gear Ratio | 4:1 | ||||||
| Output speed | 500rpm | 375rpm | 250rpm | 187rpm | 125rpm | 62.5rpm | 12.5rpm |
| Gear Ratio | 5:1 | ||||||
| Output speed | 400rpm | 300rpm | 200rpm | 150rpm | 100rpm | 50rpm | 10rpm |

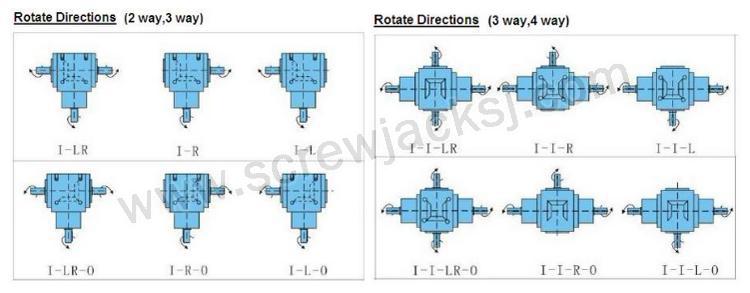

5: Rotate directions:

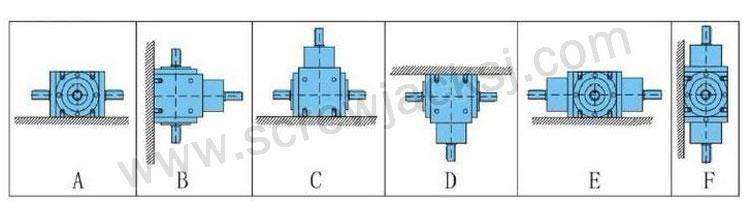

6: Installation:
